SBA-7222G-T2

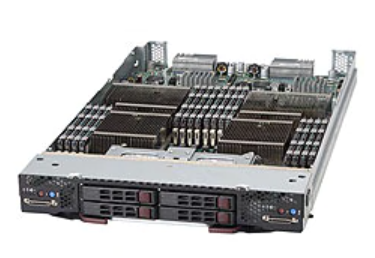

TwinBlade SBA-7222G-T2 (Black)
Motherboard
Super BHDGT
Processor/Chipset
CPU
Dual 1944-pin Socket G34
Supports up to two 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors
HT3.0 Link support
Chipset
AMD SR5650/SP5100
System Memory
Memory Capacity
8x 240-pin DIMM sockets
Supports up to 256 GB 1600/1333/1066MHz DDR3 ECC Registered memory
Supports up to 32 GB 1600/1333/1066MHz DDR3 ECC Unbuffered memory
Memory Mirroring supported
Memory Type
1600/1333/1066MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
1GB, 2GB, 4GB , 8GB , 32GB
Memory Voltage
1.5 V and 1.35 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices (per Node)
SATA
AMD 5100/5650
RAID 0, 1 support
InfiniBand Support
FDR-10/QDR (40Gb) InfiniBand mezzanine HCA (Optional)
IPMI
Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Network Controllers
Intel® 82576 Dual-Port Gigabit Ethernet
Intel® I/OAT 3 support for fast, scaleable, and reliable networking
VMDq support for better performance of virtualization
Super I/O
Winbond 83527 chip
Clock Generator
CK505 chip
System BIOS
BIOS Type
32Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
